5km Dual Scanning Phased Array Pulse Doppler Radar UAV Drone Detection System 360 Degree Rotation X Band Security Protection

LAS-50XP Multifunction Radar, X Band

Can be used for Drone/ UAV detection, Pedestrian Detection, Vehicle detection, Vessel detection

360º rotating radar

Effective range:

Drone RCS= 0.01m3: 100m~5.0km (2s/r)

Drone RCS =0.01m3: 100m~8.0km (4s/r)

Pedestrian :100m~8.0km
Vehicle :100m~10.0km
Vessel: 100m~15.0km

Product Overview:

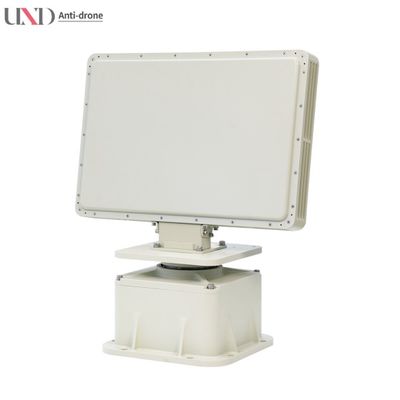

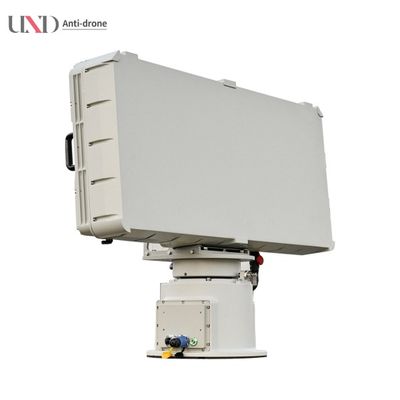

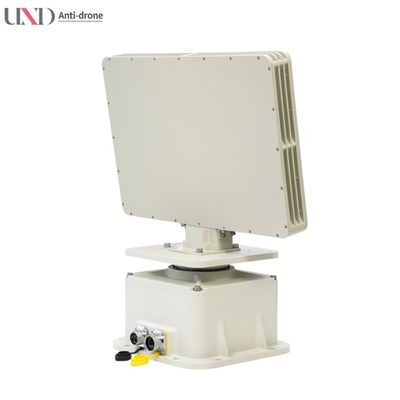

    The LAS-50XP mainly consists of one radar array, one mechanical turntable, one power adapter.It is used for the detection, warning, and target indication of micro/small civilian drones in key areas such as borders, perimeters, airports, and military bases. It canaccurately provide targettrajectory information such as azimuth, distance, altitude, and speed.

Product features:

1) High real-time and high precision: Capable of maintaining high-precision tracking for long-distance detection targets, providing effective judgment basis for border guards;

2) Strong environmental adaptability: Capable of working 24/7, adapting to harsh environments such as night, rain, snow, haze, and dust;

3) High flexibility: Long-distance target detection, easy to set up;

4) DBF technology: DBF technology transmits multi-beam technology to improve anti-interference ability;

5) Phased array system: Adopting advanced active phased array system to improve radar detection effect, capable of outputting target three-dimensional information.

Products parameter:

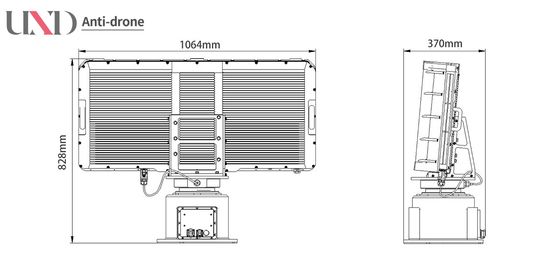

Installation dimension:
